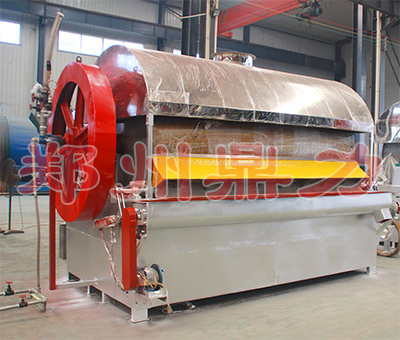

Drum yeast dryer

1.Scope of application
    JHD type drum yeast dryer is a single cylinder dryer, can be used for drying of various kinds of slurry, especially for recovery of the waste yeasts in brewhouse, dryers of different specifications can meet the production demand of brewhouses at the scale of annual 30,000 tons to 100,000 tons of beer. This machine is also suitable for the drying treatment in food, chemical and medicine, etc.



2. Mechanical structure and operating principle
  JHD type drum yeast dryer body mainly consists of dryer cylinder, frame, driving system, scraper, limited material, scraping device, leaching material device and steam-path system. In addition, it is equipped with electrical control cabinet and exhaust steam cover. This is a kind dryer that heats the material and evaporates the moisture by indirect heating of steam. Its dryer cylinder ( drum) is a metallic hollow cylinder whose surface is finished and is extremely smooth, driven by the transmission device (gearwheel and pinion), the dryer cylinder rotates in axial direction and the speed can is adjustable. The slurry is preheated in preheating tank, when heated to about 50, the slurry will be pumped to the leaching material tank at lower part of the drying cylinder, the drying cylinder submerges about 60-80mm depth, then the surface of the rotary cylinder will be coated with a layer of uniform slurry (the thickness of the film), the steam pressure in the dryer cylinder is 0.15-0.3 Mpa, the slurry is heated on the outside surface of the dryer cylinder, the moisture be exhausted by induced draft fan after evaporation. The drying will be finished when the dryer cylinder rotates one circle, the material piece on the external surface of the dry cylinder is scraped with scraping device and falls to the discharge port for collection.
3.Main characteristic and performance
  The dryer cylinder in contact with the material is made of high grade cast iron subject to ground finishing, with characteristics of anticorrosion and free pollution. This machine adopts conductive heating, there's no heat loss taken by the drying medium, so it is high heat utilization and low energy consumption, usually above 70%. It is also characterized by compact structure, less room taking and convenient cooperation and maintenance, etc. This machine is made by combining with the advantages of the Germany sample machine and in light of the actual situation in China, advanced operational performance is achieved.

  The factors that influence the performance of the machine are as   follow:
 (1)Steam pressure(0.1-0.4Mpa)or the temperature of the heating     medium
 (2)Rotating speed(410r/min)
 (3)The thickness of the film(that is the thickness of the material     attaching on the surface of the dryer cylinder)
 (4)The characteristic of the material(such as the content, fluid and     temperature of the solid matter)
4.Technical parameter (Clcik Here)
5.Production Video(Click on Show,please wait a moment)
6.Successful case
  Angel Yeast Co.,Ltd   yeast dryer
  JiangXi NangChang   yeast dryer
  Gansu Jingchuan Wangmuquan Beer Co.,Ltd.   yeast dryer
  Qingdao (Shanghai Songjiang)Brewery Co.,Ltd.   yeast dryer
  Wenzhou Conch challenges of bio-engineering Co.,Ltd.   yeast dryer
  Baoji in Shaanxi (Qingdao)Beer Co.,Ltd.   yeast dryer
8.Ordering notice(Click on Show)
